ReelRite Spool Capacity Chart

Call For Discount

Decision #1.

What are your requirements? This chart will help determine what spools and what Stand will work best to handle your Hose, Cord or Cable, sizes and Lengths.

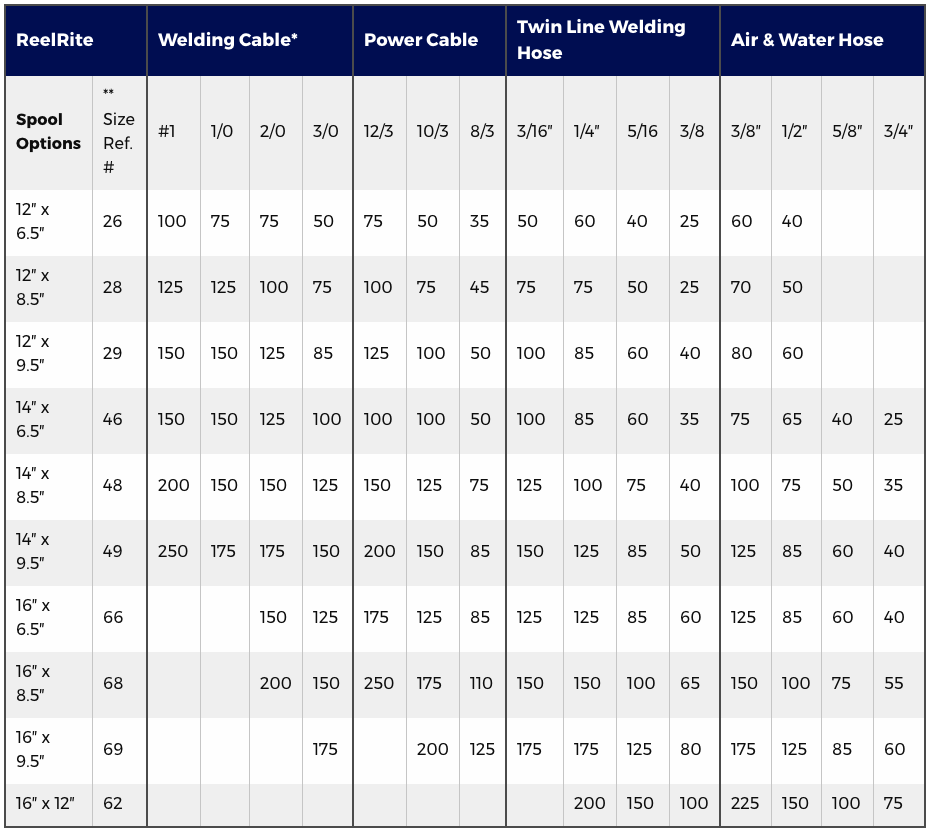

Use this chart to determine the best spool size: ( Spool Capacity in Feet)

ReelRite Welding Cable* Power Cable Twin Line Welding Hose Air & Water Hose
Spool Options ** Size Ref. # #1 1/0 2/0 3/0 12/3 10/3 8/3 3/16″ 1/4″ 5/16 3/8 3/8″ 1/2″ 5/8″ 3/4″
12″ x 6.5″ 26 100 75 75 50 75 50 35 50 60 40 25 60 40
12″ x 8.5″ 28 125 125 100 75 100 75 45 75 75 50 25 70 50
12″ x 9.5″ 29 150 150 125 85 125 100 50 100 85 60 40 80 60
14″ x 6.5″ 46 150 150 125 100 100 100 50 100 85 60 35 75 65 40 25
14″ x 8.5″ 48 200 150 150 125 150 125 75 125 100 75 40 100 75 50 35
14″ x 9.5″ 49 250 175 175 150 200 150 85 150 125 85 50 125 85 60 40
16″ x 6.5″ 66 150 125 175 125 85 125 125 85 60 125 85 60 40
16″ x 8.5″ 68 200 150 250 175 110 150 150 100 65 150 100 75 55
16″ x 9.5″ 69 175 200 125 175 175 125 80 175 125 85 60
16″ x 12″ 62 200 150 100 225 150 100 75

ReelRite

*For longer lengths of cable and higher amperages, check the impedance chart.
**The First number (2, 4, 6,) indicates the the reel disk is 12″, 14″ and 16″
The Second number (6,8,9) indicates the reel hub width: 6.5″, 8.5″ & 9.5″

Decision # 2

Based upon how many reels you want, choose a stand. Single Reel, Side-by-Side and Stacked for 2 Reels and a quad for 3 or four reels. See picture below. Standard Stands or Powder coated black. Other color available.

Amps Total Feet
75 100 150 200 250 300
100 2 2 2 1 1/0 2/0
125 1 1 1/0 1/0 2/0 2/0
150 1/0 1/0 2/0 2/0 3/0
200 2/0 2/0 2/0 3/0 4/0
250 2/0 3/0 3/0 4/0 4/0
300 3/0 4/0 4/0
400 4/0 4/0
450 4/0

ReelRite

*Exceeding the recommended cable length may reduce welding effectiveness

Working Amps Total Feet
100 150 200 250 300
150 2 2 2 1 2/0
200 1 1 1/0 2/0 3/0
250 1/0 1/0 2/0 2/0 3/0
300 2/0 2/0 2/0 3/0 4/0
350 2/0 3/0 3/0 4/0 4/0
400 3/0 4/0 4/0
450 4/0 4/0
500 4/0

ReelRite

*Exceeding the recommended cable length may reduce welding effectiveness
